| Quantity: | |
|---|---|
● Reliable
There is no risk of oil degradation during using the low noise oil-free scroll compressor process, which helps to extend the service life of the high bar air compressor. It has a simple structure and few parts, which can effectively avoid damage to parts and improve the reliability of the equipment.
● Silent
The low noise air compressor for portable defibrillator has low operating noise. It can be used normally even in a quiet environment without disturbing others.
● Efficient
The oil-free scroll air compressor for portable defibrillator is small in size and can be flexibly combined according to manufacturing needs to improve the adaptability and efficiency of the equipment. At the same time, in the process of compressing air, the output compressed air is of high purity, meeting the air needs of different fields.

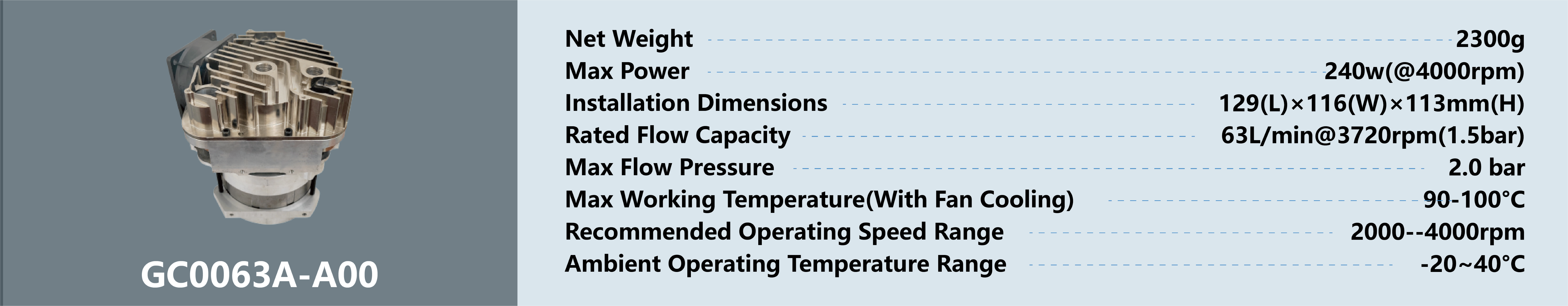

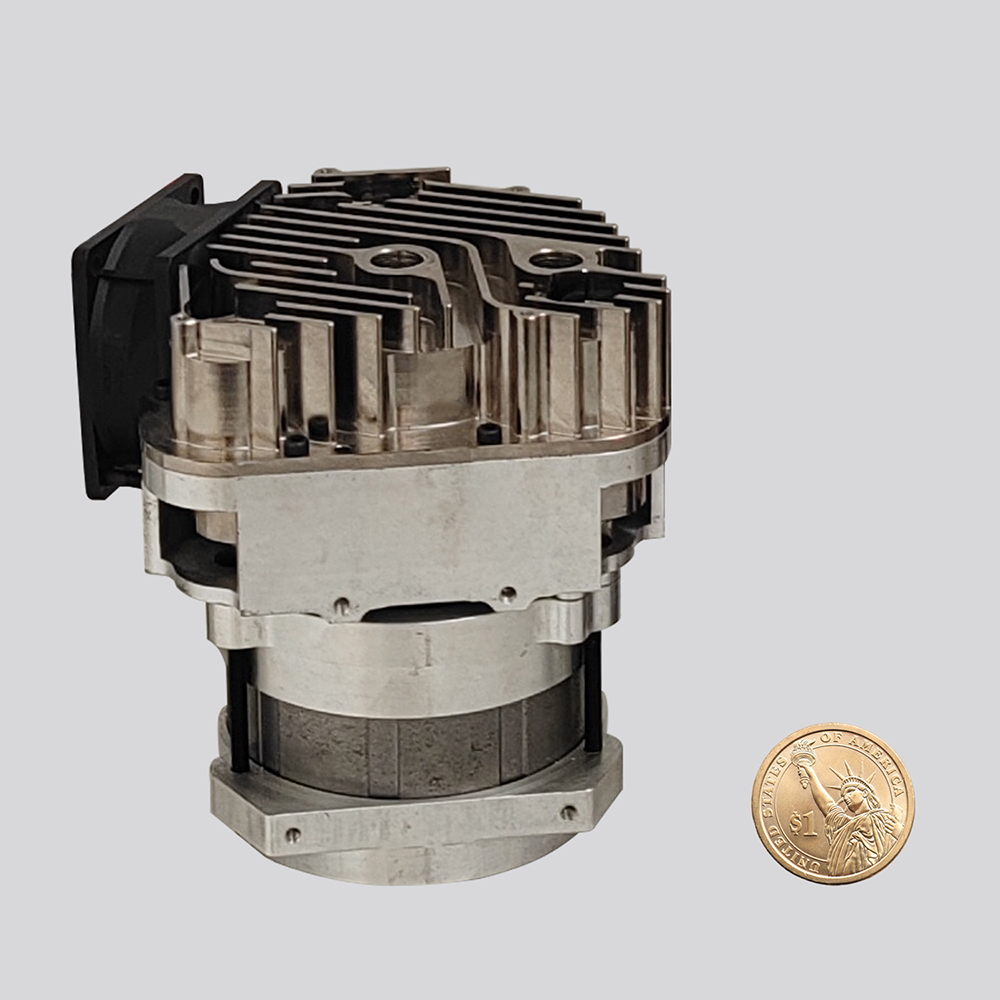

Oil Free Scroll Air Compressor Model | GC0063A-A00 |
Net Weight | 2300g |
Max Power | 240W(@4000rpm) |
Installation Dimensions | 129(L)x116(W)x113mm(H) |
Rated Flow Capacity | 63L/min@3720rpm(1.5bar) |
Max Flow Pressure | 2.0bar |
Max Working Temperature (With Fan Cooling) | 90-100℃ |
Reccommended Operating Speeed Range | 2000--4000rpm |
Ambient Operating Temperature Range | -20～40℃ |
High bar oil-free air compressor are widely used in medical equipment. For example, they can be used in defibrillators. Oil-free scroll compressors can ensure the supply of stable and high-quality compressed air to ensure the accuracy and safety of electric shock.
Q: What is the rated flow capacity?
A: Its rated flow capacity is 63L/min. It can ensure the stable output of high-quality and high-purity air during use.
Q: What is the net weight?
A: Its net weight is 2300g. It is light in weight, small in size and simple in structure, which can greatly reduce the frequency of parts and reduce the maintenance cost of equipment.
Q: What is the dimensions?
A: Its size is 129x116x113mm. It is small in size and easy to transport and install. At the same time, it can be flexibly combined to meet different manufacturing needs.
