● Oil-free Purity
Without a lubrication system, there is no need to add or replace lubricating oil. Thus high pressure oil free scroll air compressor can avoid pollution and equipment failure caused by oil leakage or impure oil, and achieve a purer air output effect.
● Efficient and Reliable
Without friction or oil resistance, the latest high pressure oil free air compressor offters higher efficiency. At the same time, noise and vibration levels are effectively reduced, making the compressor operation quieter and smoother.
● Easy Maintenance
With a simple, lightweight design and fewer parts, the latest oil free scroll air compressor for portable oxygen concentrator offers longer life. Since the frequency of parts replacement is greatly reduced, the maintenance cost of the equipment is lower.

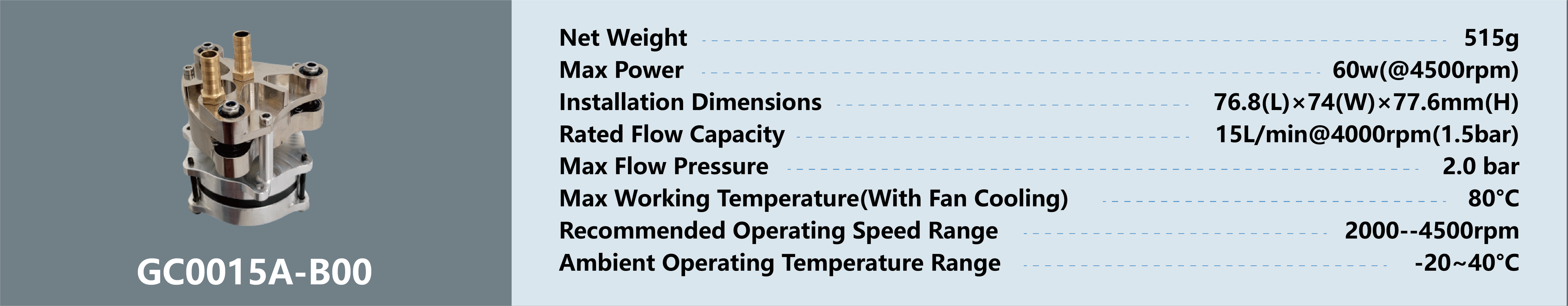

| Oil Free Scroll Air Compressor Model | GC0015A-B00 |
| Net Weight | 515g |
| Max Power | 60W(@4500rpm) |
| Installation Dimensions | 76.8(L)x74(W)x77.6mm(H) |
| Rated Flow Capacity | 15L/min@4000rpm(1.5bar) |
| Max Flow Pressure | 2.0bar |
| Max Working Temperature (With Fan Cooling) | 80℃ |
| Reccommended Operating Speeed Range | 2000--4500rpm |
| Ambient Operating Temperature Range | -20～40℃ |

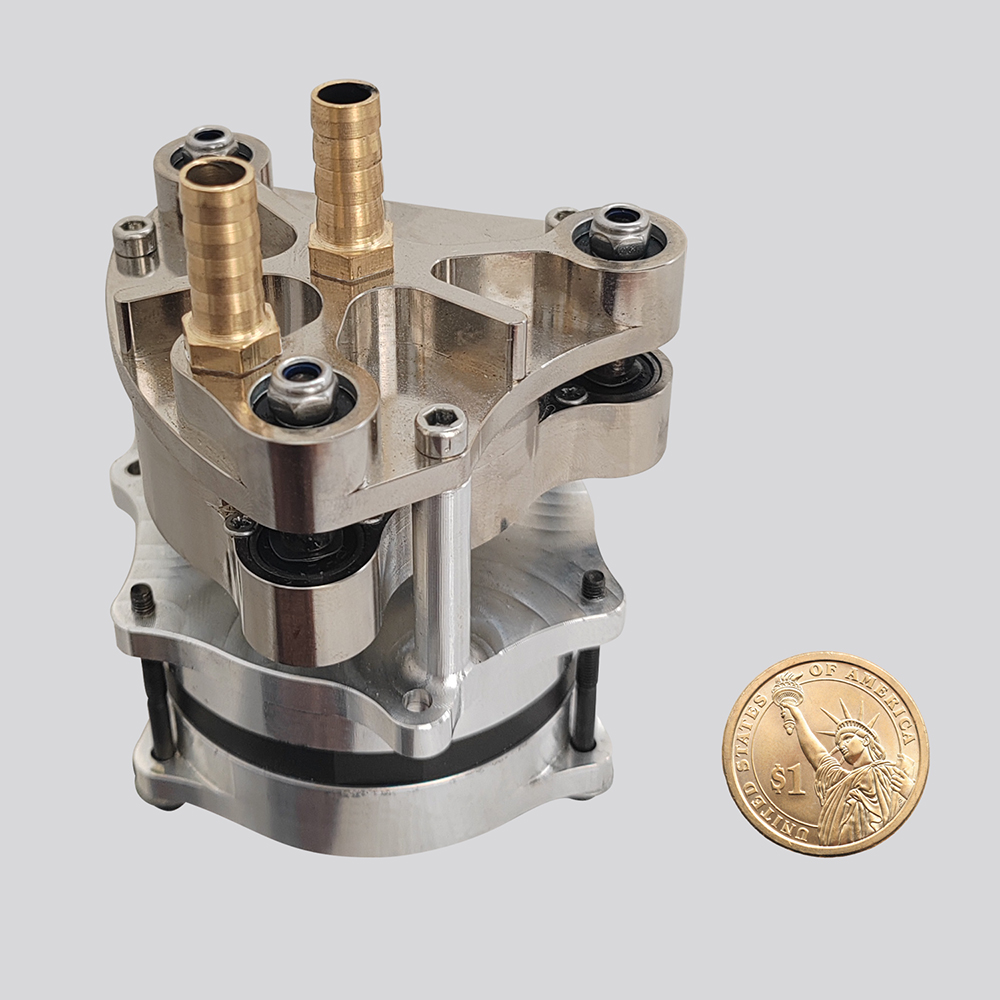

Latest low noise oil free scroll air compressor can be used in the manufacture of portable oxygen concentrators. The compressed air output by high pressure low noise oil free scroll air compressor is highly pure and does not contain any oil. It is safer and more effective, meeting people's demand for pure air.
Q: What is the net weight?
A: Its weight is 515g. Light weight and small size can avoid damage to parts and extend the service life of parts.
Q: What is the rated flow capacity?
A: It is 15L/min@4000rpm. It offters higher efficiency and quieter, smoother operation.
Q: What is the dimensions?
A: It is very small, only 76.8x74x77.6mm in size. During use, it can reduce the frequency of replacement and reduce maintenance costs.
