Energy-efficient Temperature Control No Freon Water-cooled & Heating Air Conditioner

Product Advantage

● Water as refrigerant

Water-cooled & heating air conditioners use water as a refrigerant to cool the air, which greatly improves cooling efficiency, reduces energy consumption, and is more environmentally friendly.

● Slience

No freaon water-cooled & heating air condditioner typically operate more quietly than air-cooled units. This is because they often use a separate chiller plant or cooling tower, which is often set apart from living spaces. Additionally, the cooling process itself generates less noise, as it doesn’t rely on large fans to move air over the condenser coils.

● Less than 24V DC low voltage power supply

In the hyperbaric oxygen chamber, the temperature control water-cooled air conditioner uses a DC low-voltage power supply below 24V. It can more effectively eliminate the risk of high temperature and sparks caused by AC power.

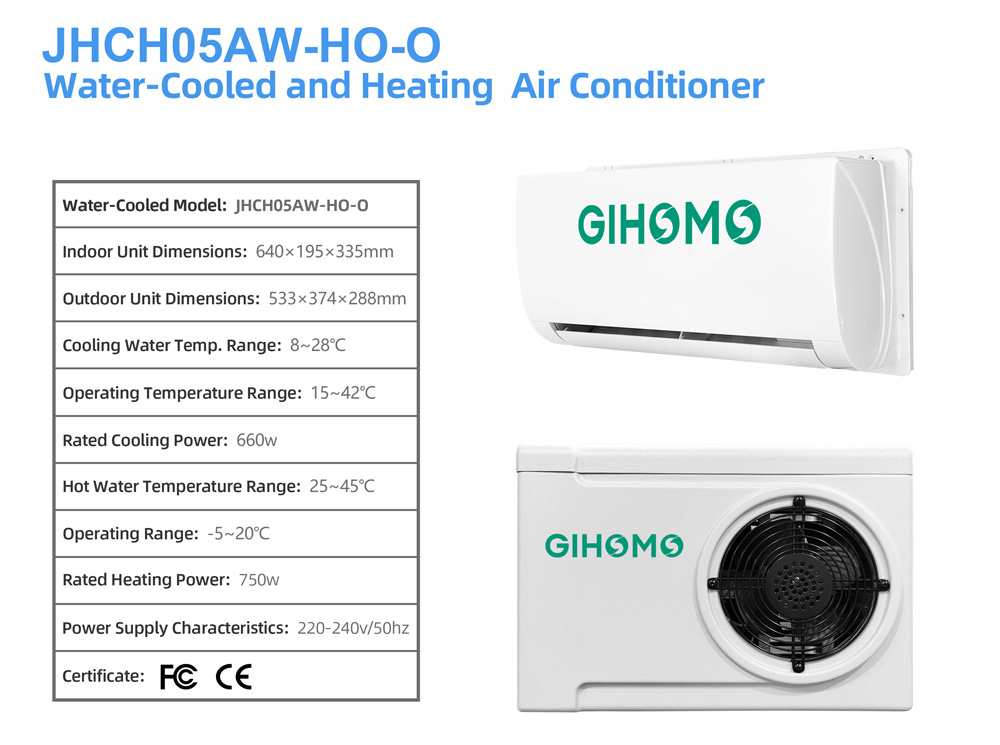

Detailed Parameter

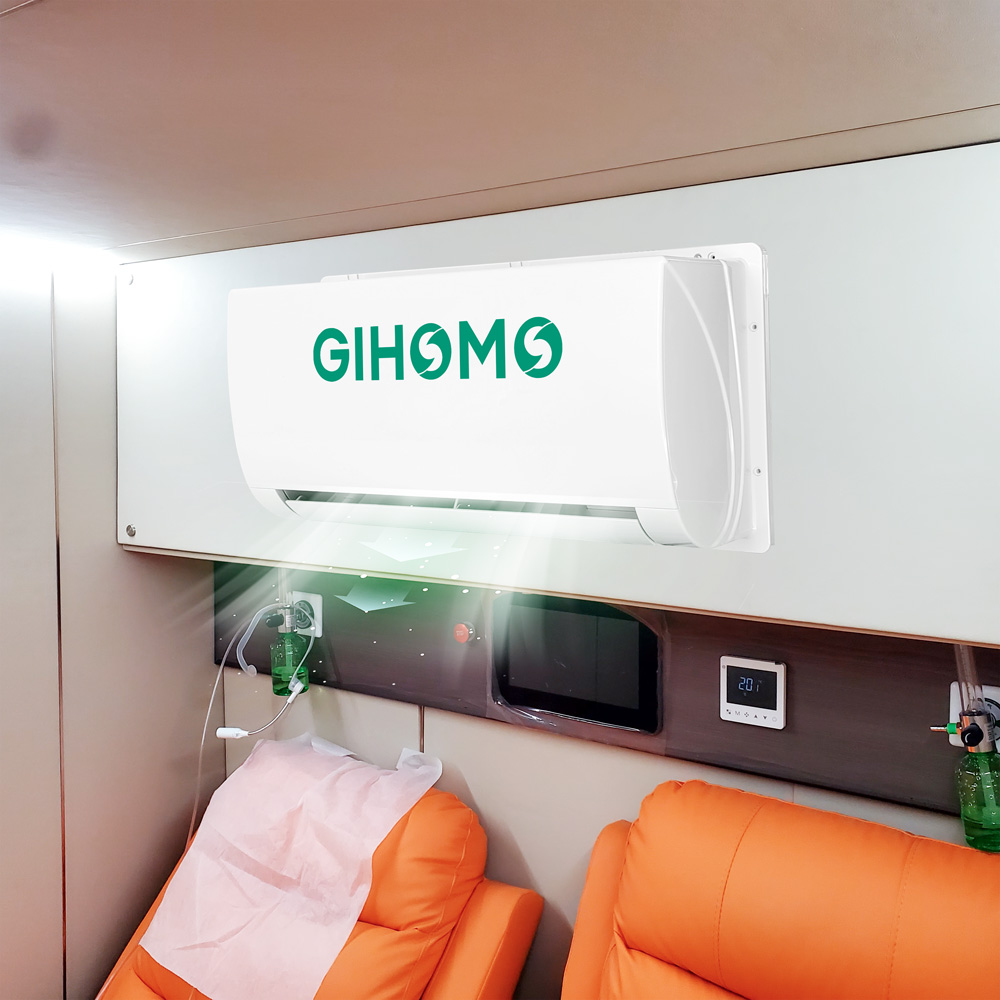

Application Scenario

Since the hyperbaric oxygen chamber is a highly sealed space with high pressure inside, once the fluorine-containing refrigerant leaks, it will be very dangerous to the people inside. Therefore, temperature control no freon water-cooled air conditioner should be used in the hyperbaric oxygen chamber to effectively reduce the temperature while ensuring the safety of the users.

Instructions For Use

① First connect the unit's water inlet/outlet pipes to the corresponding water inlet/outlet pipes of the indoor unit, and note that the connected water pipes need to correspond;

② Water filling I: Unplug the "water inlet" and "exhaust port" plugs on the back of the unit, and inject clean water from the "water inlet" until it is full (about 1000 ml).

③ Water filling II: Power on, and long press the "" and "" button on the controller at the same time to enter the "water filling" mode. Continue to pour water from the "water filling port" until it is full.

④ Stop water filling and put the plug back. Exit the unit water filling mode (same as entering), long press "" and "";

⑤ Power on/off: press the power on/off button "".

⑥ The controller can set the water outlet temperature, which is used to indirectly reflect the internal temperature of the oxygen chamber. The factory default is 9℃. You can set other temperatures by yourself, and the temperature setting range is 8~28℃. Press the " " button.

⑦ Other button instructions: Press the "" button to check the unit operating parameters. Under normal circumstances, the user does not need to check. If this button is pressed, press "" to return. "" is the return button.

FAQ

Q: Is the water-cooled air conditioner safe?

A: Our water-cooled air conditioners use cold water as refrigerant, which is safer and avoids the risk of refrigerant leakage. At the same time, in the hyperbaric oxygen chamber, water-cooled air conditioners use low-voltage current to avoid the risk of fire.

Q: Is the water-cooled air conditioner effective?

A: Water has a relatively high specific heat capacity and can effectively absorb and take away a large amount of heat. It makes the water-cooled air conditioner cool down quickly, with high cooling efficiency and good stability.

Q: What is the guarantee for our products?

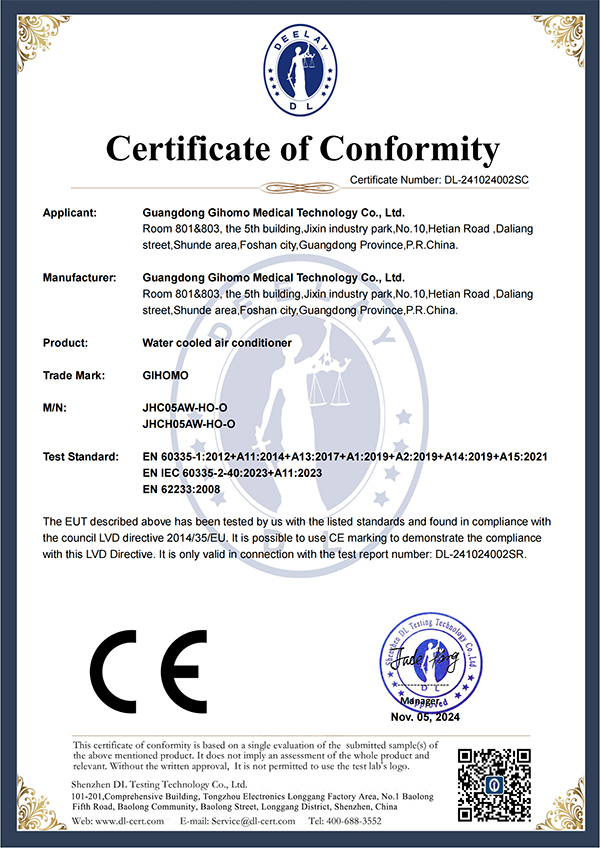

A: Our water-cooled air conditioners have passed CE certification. Safety is guaranteed.
