● Efficient
One of the biggest advantages of mini water-cooled air conditioner is their superior energy efficiency. Water has better thermal conductivity than air, allowing these systems to transfer heat more effectively while using less energy.
● Durability
Water-Cooled air conditioner for commercial use are often built with higher-quality components than their air-cooled conditioner. This superior build quality can result in a longer lifespan and more reliable performance over time. While this may mean a higher up-front cost, it can lead to savings in the long run through reduced repair and replacement needs.
● Green
Water as a refrigerant has little impact on the environment. Ordinary air conditioners use fluorine-containing refrigerants, which can damage the ozone layer and cause the greenhouse effect. Water is a harmless substance and is more environmentally friendly. At the same time, mini energy-saving water-cooled air conditioner can be up to 215% more energy-efficient than standard air-cooled units, potentially leading to significant savings on electricity bills.

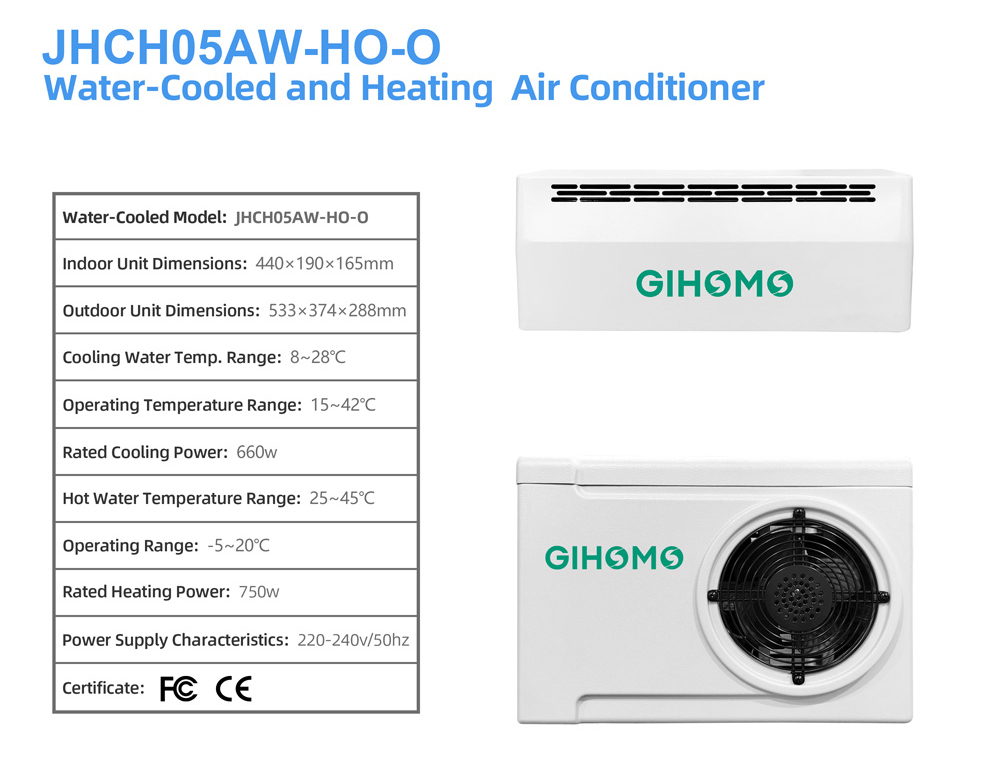

Product name | Water-cooled & Heating Air Conditioner |
Water-cooled model | JHCH05AW-HO-O |
Indoor Unit Dimensions | 440x190x165mm |
Outdoor Unit Dimensions | 533x374x288mm |
Cooling Water Temp. Range | 8～28℃ |
Operating Temperature Range | 15～42℃ |
Rated Cooling Power | 660W |
Hot Water Temperature Range | 25～45℃ |
Operating Range | -5～20℃ |
Rated Heating Power | 750W |
Power Supply Characteristics | 220-240V/50Hz |

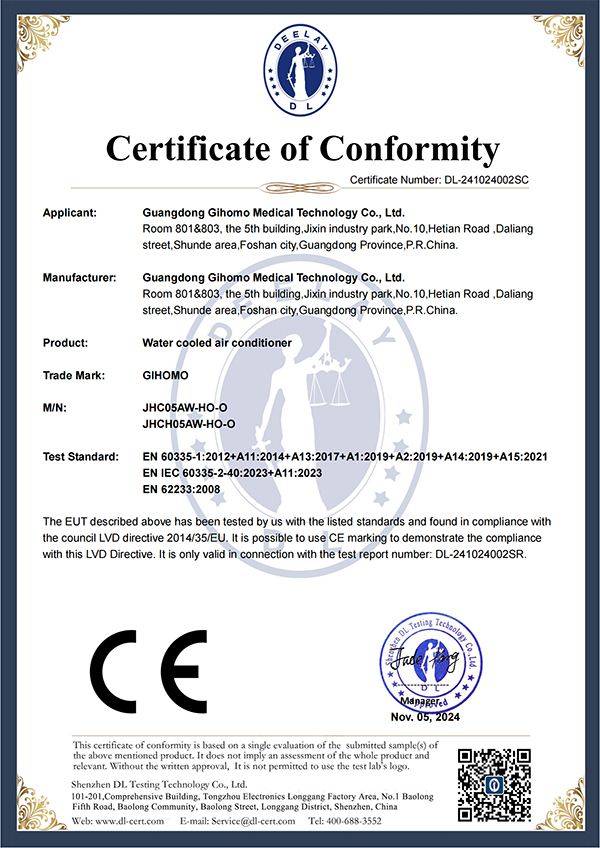

Certificate | FCC CE |

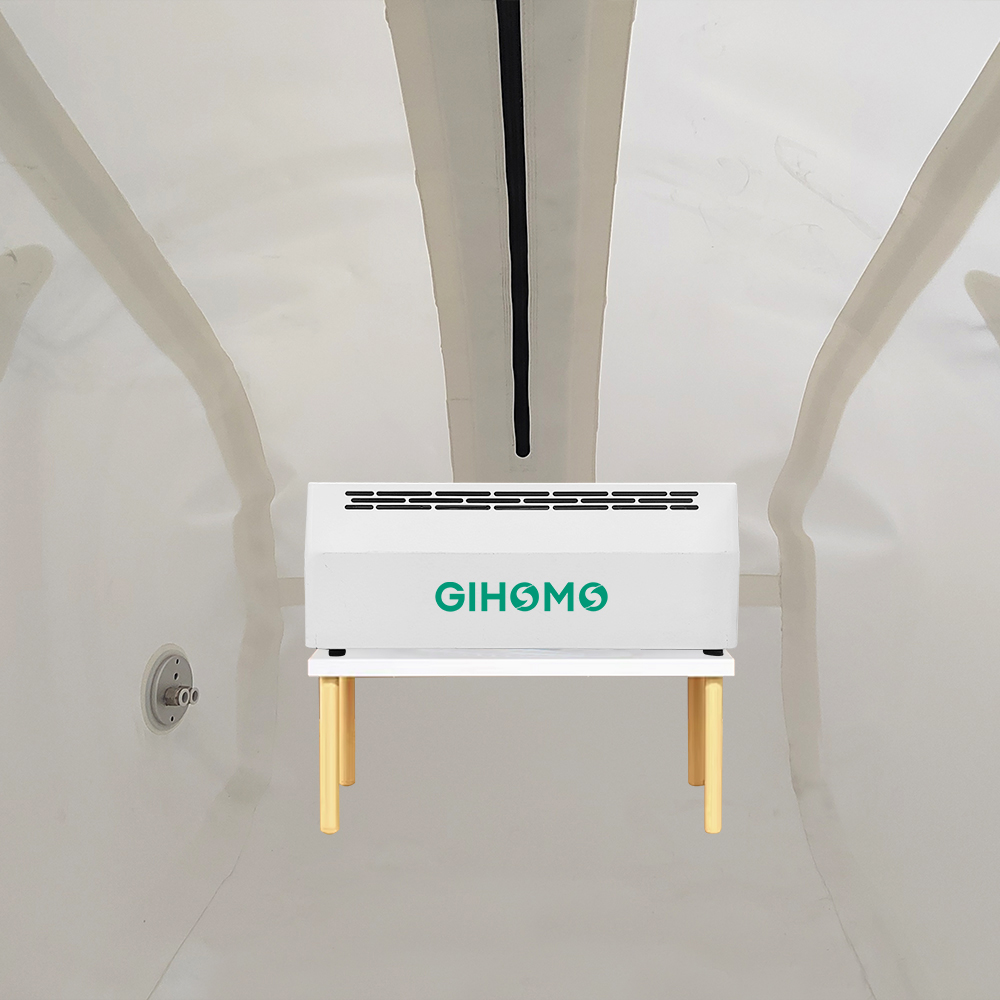

This mini water-cooled air conditioner is suitable for use in a hyperbaric oxygen soft shell chamber. It is small in size and can be used in a hyperbaric oxygen soft shell chamber. The size is only 440x190x165mm, which has less restrictions on the use of space. At the same time, in the hyperbaric oxygen soft shell chamber, the energy-saving water-cooled air conditioner uses a DC low-voltage power supply below 24V, which is safer.
① First, connect the unit's water inlet and outlet pipes to the corresponding pipes of the indoor unit, ensuring that the connected water pipes are correctly matched;
② Water filling I: Remove the plugs from the "water inlet" and "exhaust port" on the back of the unit, then pour clean water into the "water inlet" until the tank is full (approximately 1000 ml).
③ Water filling II: Turn on the power, then press and hold the "
" and "
" buttons on the controller simultaneously to enter "water filling" mode. Continue adding water through the "water filling port" until full.
④ After filling, stop the water flow and replace the plugs. Exit the water filling mode (same as entering), by pressing and holding "
" and "
";
⑤ Power on/off: press the power on/off button "
".
⑥ The controller allows you to set the water outlet temperature, which indirectly reflects the internal temperature of the oxygen chamber. The default is set to 9°C, but you can adjust it within a range of 8°C to 28°C by pressing the "
" button.
⑦ Other button functions: Press the "
" button to view the unit's operational parameters. Generally, users do not need to check this. If pressed, use the "
" button to return. "
" button serves as the return button.
Q: Is the water-cooled air conditioner reliable?
A: Water-cooled air conditioners have a longer service life. The failure rate of internal parts is low, and the frequency of daily maintenance is low. Even if a failure occurs, it is relatively simple and convenient to repair.
Q: Is the water-cooled air conditioner effective?
A: Water-cooled air conditioners cool down quickly. At the same time, they can accurately control the temperature, making users feel more comfortable.
Q: What warranty do we offer for our products?
A: All of our products comply with European standards and are backed by the necessary certifications. Additionally, we offer a one-year warranty for peace of mind
