● Efficient
Compared with traditional air conditioners, high performance water-cooled air conditioner have higher cooling efficiency. Water-cooled air conditioners dissipate heat through cold water. Water has a large specific heat capacity and can quickly reduce the indoor temperature, allowing users to have a more comfortable experience.
● Safety
Water-cooled air conditioner for cooling units use cold water for cooling. Compared with fluorine-containing refrigerants, water is a harmless, non-radioactive substance, which is safer. At the same time, using cold water as a refrigerant reduces pollution to the environment.
● Low energy consumption
High performance ultra low noise water-cooled air conditioners are better in terms of energy use due to their high heat transfer efficiency. In most cases, these systems require less electricity to achieve the desired cooling effects, which in turn cuts down on the overall power requirement.

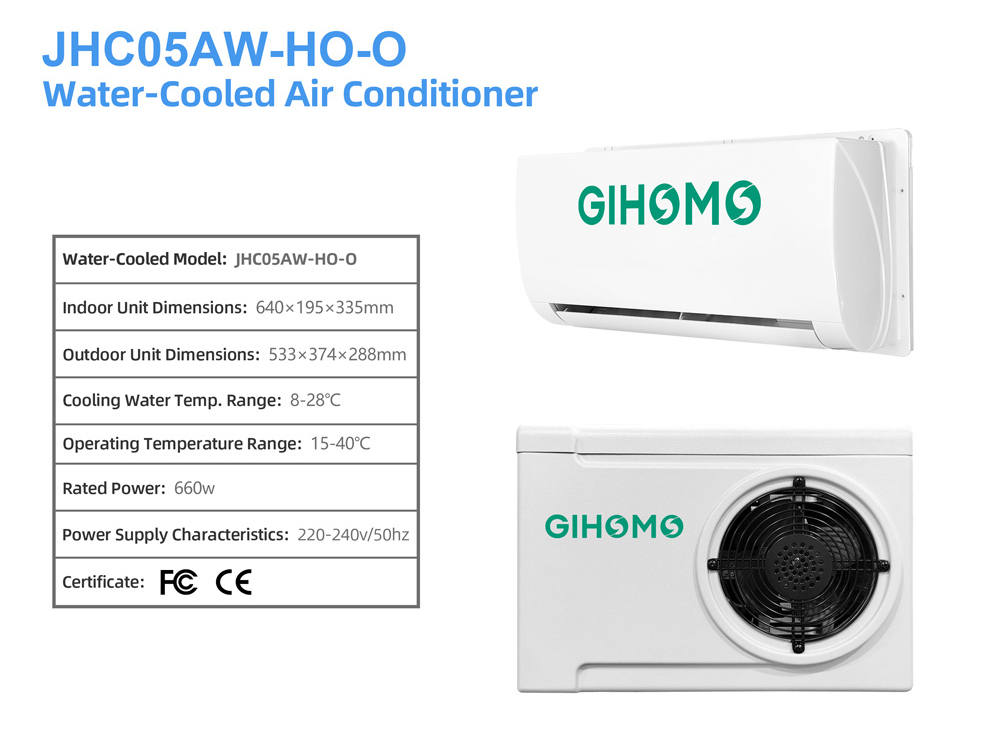

Detailed Parameter
Product name | Water-cooled Heating and Cooling Air Conditioner |

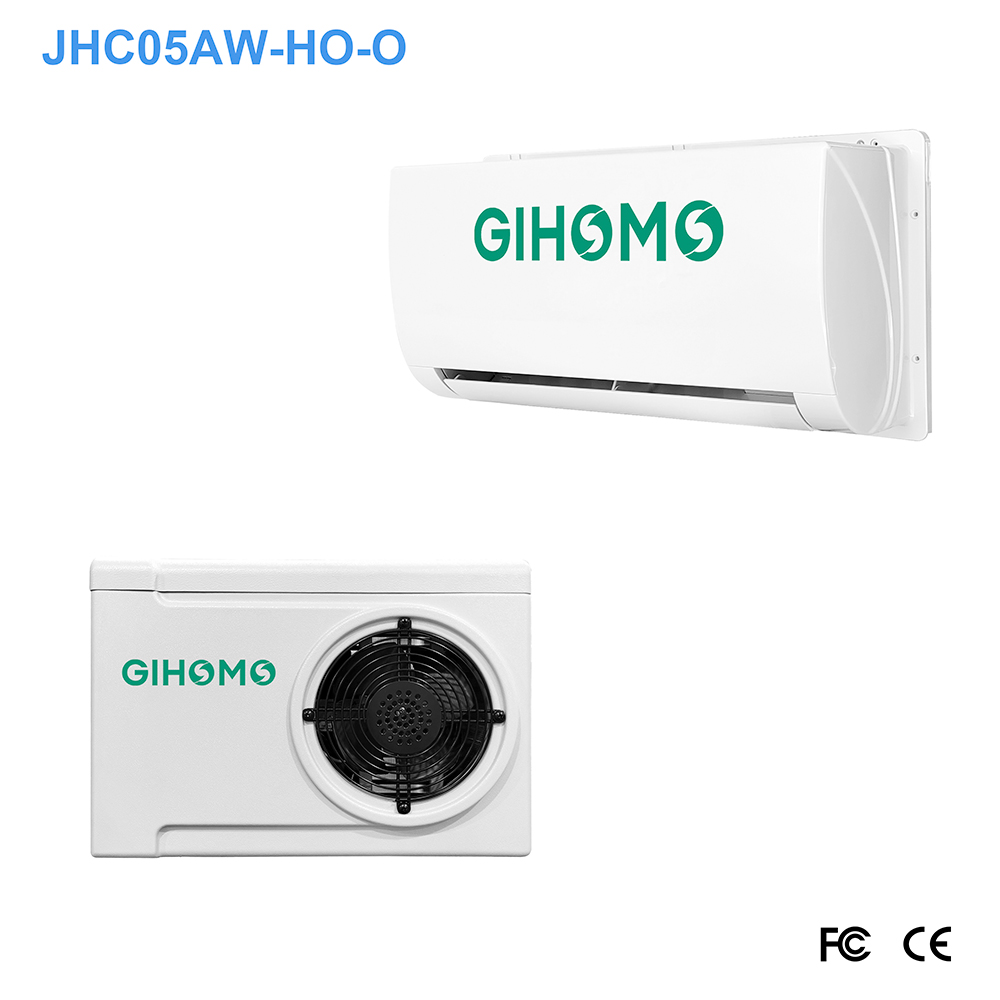

Water-cooled model | JHC05AW-HO-O |
Indoor Unit Dimensions | 640x195x335mm |
Outdoor Unit Dimensions | 533x374x288mm |
Cooling Water Temp. Range | 8～28℃ |
Operating Temperature Range | 15～42℃ |
Rated Cooling Power | 660W |
Power Supply Characteristics | 220-240V/50Hz |
Certificate | FCC CE |

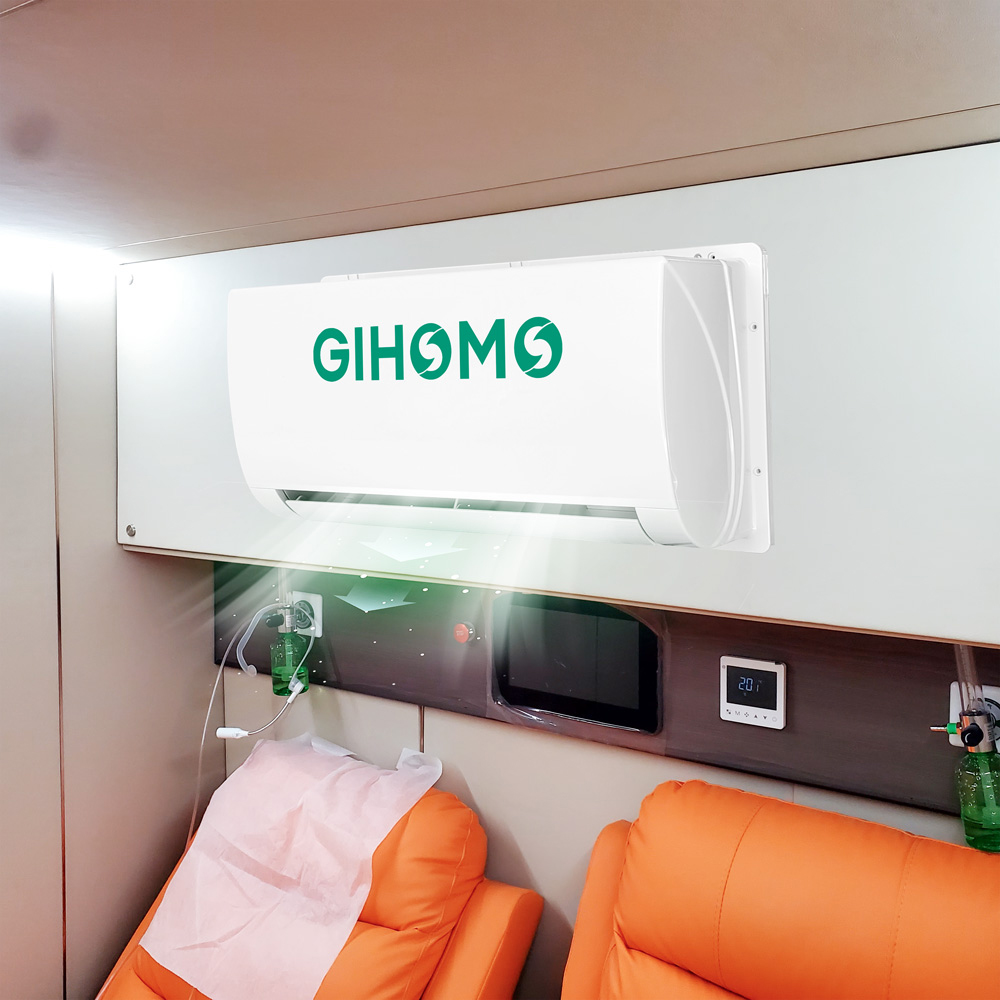

Using water-cooled air conditioners in the hyperbaric oxygen hard shell chamber can quickly cool down and refresh the air. Even in the closed environment of the hyperbaric oxygen chamber, users will not feel stuffy or have difficulty breathing. At the same time, using water-cooled air conditioners is safer. It uses 24V low-voltage direct current, eliminating the danger of sparks and high temperatures caused by current.
① First connect the unit's water inlet/outlet pipes to the corresponding water inlet/outlet pipes of the indoor unit, and note that the connected water pipes need to correspond;
② Water filling I: Unplug the "water inlet" and "exhaust port" plugs on the back of the unit, and inject clean water from the "water inlet" until it is full (about 1000 ml).
③ Water filling II: Power on, and long press the "
" and "
" button on the controller at the same time to enter the "water filling" mode. Continue to pour water from the "water filling port" until it is full.
④ Stop water filling and put the plug back. Exit the unit water filling mode (same as entering), long press "
" and "
";
⑤ Power on/off: press the power on/off button "
".
⑥ The controller can set the water outlet temperature, which is used to indirectly reflect the internal temperature of the oxygen chamber. The factory default is 9℃. You can set other temperatures by yourself, and the temperature setting range is 8~28℃. Press the "
" button.
⑦ Other button instructions: Press the "
" button to check the unit operating parameters. Under normal circumstances, the user does not need to check. If this button is pressed, press "
" to return. "
" is the return button.
Q: Is the water-cooled air conditioner safe?
A: Water is a non-toxic and harmless substance. Water-cooled air conditioners use water as refrigerant, which can effectively avoid the risk of refrigerant leakage.
Q: Is the water-cooled air conditioner effective?
A:Water has a large specific heat capacity and can quickly take away the heat in the air. Water-cooled air conditioners can achieve a rapid cooling effect and give users a comfortable feeling.
Q: What is the guarantee for our products?

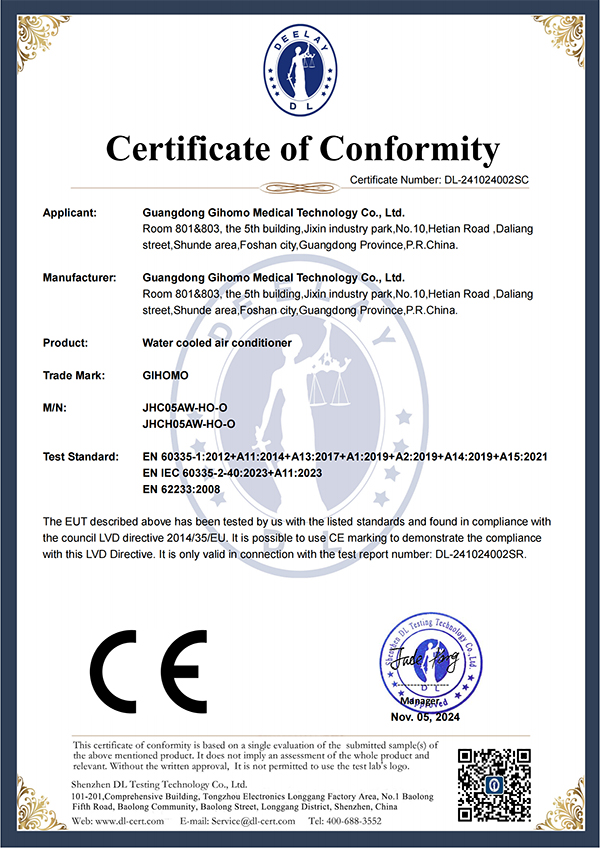

A:Our water-cooled air conditioners have passed CE certification. Safety is guaranteed.
